Massager CM40G
Learn more tutorials and instructions of Arboleaf Massager CM40G.
Download User Guides & ManualsOperating your device
Charge the device
(1) When the remaining battery power is less than 10%, the power indicator light is orange breathing; when the remaining battery power is more than 10%, the power indicator light is blue always on.
(2) When charging, the power indicator light breathes blue; when charging is completed, the power indicator light is blue and always on.

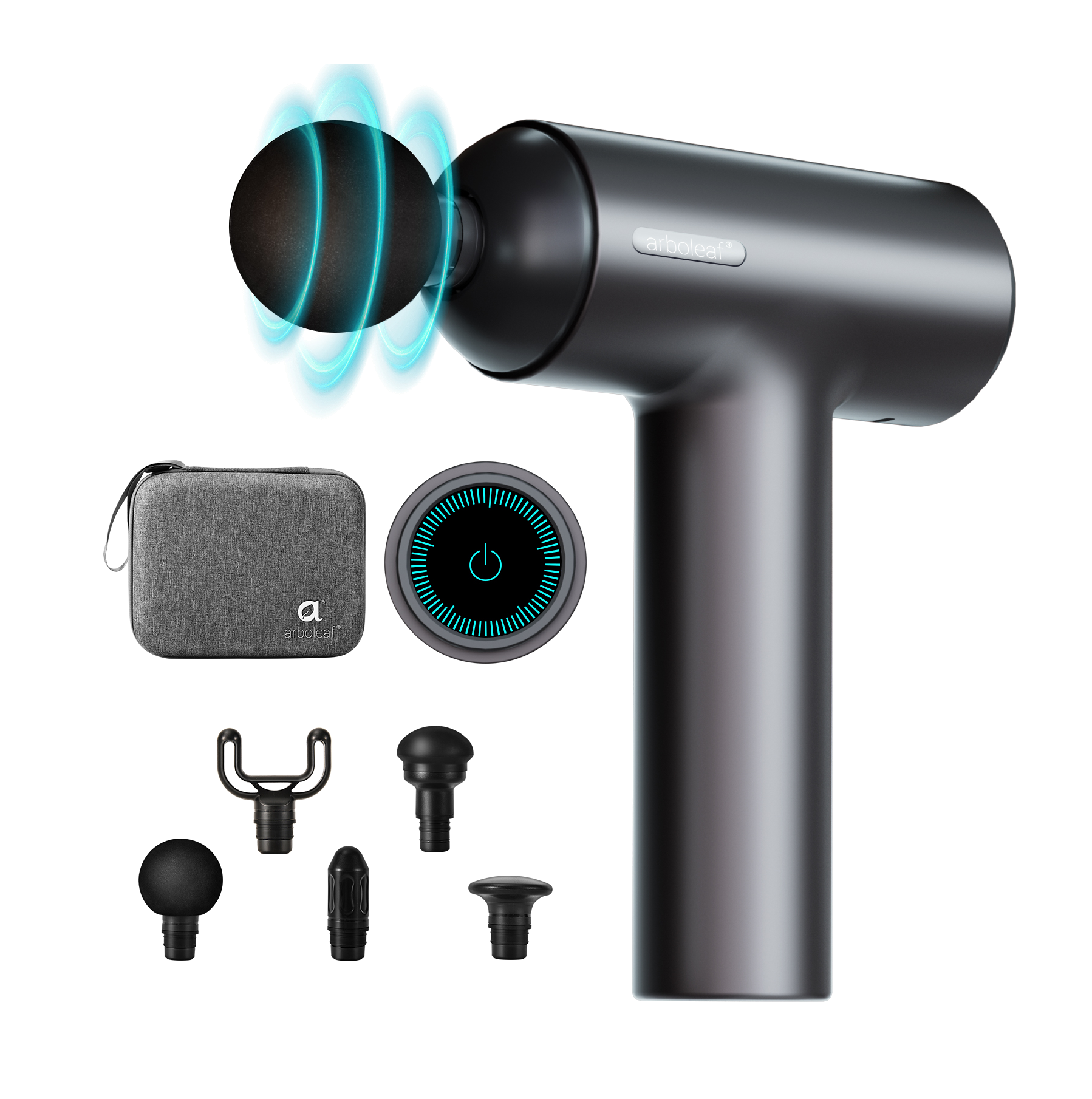

Select an attachment head
You can choose the set of heads that best suits your needs.
- Ball Head: For large muscle groups, like back, leg.
- U shape Head : For both sides of the spine and Achilles tendon.
- Bullet Head: For Palms and soles, trigger point massage.
- Flat Head: For relaxing all body muscle part.
- Heat & Cold Head: Exclusive to the Heat & Cold version, combining heat for stiffness and cold for swelling, ideal for recovery.
Insert the selected attachment head to the device
Note: Never change an attachment head when the device is on.
Turn on the device
Press the Power on-off/Speed switch button for 2 seconds to turn on the massager. Initially it will be set at Speed 1.
Note: Press the Power on-off/Speed switch button for 2 seconds toggles power on and off.
Power/Mode Switch Button
1. Power On/Off
- Power On: Press and hold the Power on-off/Speed switch button for 1 second. The speed setting indicator will run clockwise to full light, and the device will enter the Pressure-Adaptive Speed Mode.
- Power Off: Press and hold the Power on-off/Speed switch button for 2 seconds. The speed setting indicator will run counterclockwise to full dark, and the device will stop working.
2. Speed Settings
To adjust the speed, short press the speed control button. Each press will cycle through the available speed settings:
- Speed 1 (1600 - 3000 rpm) – Speed indicator lights are all on and scrolling: automatically adjust the speed according to the pressing force.
- Speed 2 (1600 rpm) – 1/5 of the speed indicator light is on: for warming up muscles.
- Speed 3 (1950 rpm) – 2/5 of the speed indicator light is on: for fascial relaxation.
- Speed 4 (2300 rpm) – 3/5 of the speed indicator light is on: for soothing tired muscles or sore muscles.
- Speed 5 (2650 rpm) – 4/5 of the speed indicator light is on: for relaxing stiff muscles.
- Speed 6 (3000 rpm) – Speed indicator lights are all on: for massaging very stiff muscles or deep tight knots.
Massage
Apply massage head to your body’s soft tissues or the target areas of the body.
Auto power off protection
Maximum run-time protection: The device will automatically shut off after running continuously for 10 minutes.
To re-start, press the Power on-off/Speed switch button for 1 seconds to turn on the massager, and then tap the button to set the next speed.
Safety instructions
Why do I feel pain or discomfort when using the massager?
Massager typically generate vibration and pressure, which can promote muscle relaxation and blood circulation.
However, if you feel pain or discomfort, it may be due to using the massager at a high intensity or applying excessive pressure in sensitive areas. Lower the vibration intensity or use appropriate attachments and avoid using the massager on joints, bones, or injured areas.
Which body parts can I use the massager on?
The massager can be used on head and whole body to promote muscle relaxation and recovery. Common areas of use include neck, back, arms, and shoulders. However, avoid using the massager on joints, bones, or any injured areas.
Can the massager replace medical treatment?
Massager are primarily used for muscle relaxation, pain relief, and rehabilitation, and they cannot replace professional medical treatment. If you have severe pain, injuries, or chronic conditions, consult a healthcare professional for advice. They can provide you with more accurate diagnoses and treatment plans.
Contraindications
Please do not use the Massager CM40G, or any percussion device without first obtaining approval from your physician if any of the following apply:
Pregnancy, diabetes with complications such as neuropathy or retinal damage, wear of pacemakers, recent surgery or injury, epilepsy or migraines, herniated disks, spondylolisthesis, spondylolysis, or spondylosis, recent joint replacements or IUD, metal pins or plates or any concerns about your physical health.
Frail individuals and children should be accompanied by an adult when using any percussion or vibration device.
These contraindications do not mean that you are not able to use a percussion or vibration device but we advise that before doing so you consult your physician. Ongoing research is being done on the effects of percussion massage for specific medical disorders that may result in the shortening of the list of contraindications as shown above.
Safety
- Use the Massager CM40G only on the body's soft tissue as desired without producing pain or discomfort.
- Bruising can occur regardless of control setting or pressure applied. Check treated areas frequently and immediately stop at first sign of pain or discomfort.
- Do not reach for a device that has fallen into water. Unplug immediately.
- A device should never be left unattended when plugged in. Unplug from outlet when not in use, and before putting on or taking off parts.
- Do not operate under blanket or pillow.
- This device can be used by children aged from 8 years and above.
- Use this device only for its intended use as described in this manual. Do not use attachments not recommended by the manufacturer.
- Never operate this device if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or if it has gotten wet. If your device isn't working properly, please connect with our customer support team.
- Do not carry the unit by the power cord or use the power cord as a rope.
- Never operate the device with the air openings blocked. Keep the air openings free of lint, keep fingers, hair, or any other body part away from the shaft and backside of the applicator as pinching may occur.
- Never drop or insert any object into any opening.
- Do not remove screws or attempt to disassemble.
Benefits
Benefits
- Muscle recovery: Loosens knots, fights fatigue.
- Flexibility: Maintains range of motion, reduces stiffness.
- Posture improvement: Relieves tightness, aids comfort.
- Injury prevention: Balances muscles, enhances stability.
- Deep Tissue Massage: 10mm amplitude deeply relieves tension and aids recovery.
Troubleshooting
Why isn't my massager turning on?
Please ensure the massage gun is fully charged and the power switch is turned on. If it still doesn't work, try resetting the device. If the issue persists, feel free to contact us for support.
Why is my massager making abnormal noise during use? Is it normal?
Some noise is normal during operation, but if the noise is unusually loud or abnormal, it could indicate an issue with internal components. We recommend stopping use and contact us for inspection or repair.
My massager doesn't last long and requires frequent charging. What should I do?
Make sure the massager is fully charged and you're using the correct charger. High-intensity use can drain the battery faster. If the issue continues, you may need a battery replacement or further assistance.
How do I clean and maintain the massager?
Regular cleaning and maintenance are necessary to keep the massager in good working condition.
First, make sure to turn off the massager and unplug it before cleaning. Use a damp cloth or tissue to gently wipe the surface of the massager and attachments. Avoid spraying water directly onto the massager.
Additionally, periodically check and replace the massager attachments or components as recommended by arboleaf to ensure its proper functioning.
